Spring Boot Method Security with SAPL

This guide walks through securing a Spring Boot application with SAPL. You will add policy-based authorization to JPA repository methods, write policies that enforce age restrictions, transform and filter query results based on user attributes, and implement constraint handlers for obligations.

The guide assumes basic familiarity with Spring Boot. For background on ABAC concepts and SAPL’s architecture, see the documentation.

The complete source code is available at github.com/heutelbeck/sapl-tutorial-01-spring.

Project Setup

First, you will implement a simple Spring Boot application. Go to Spring Initializr and add the following dependencies to a project:

We will use Maven as our build tool and Java as our language for this tutorial.

Select Java 21 (or higher) and Spring Boot 4.0.3 (or higher) in the Initializr.

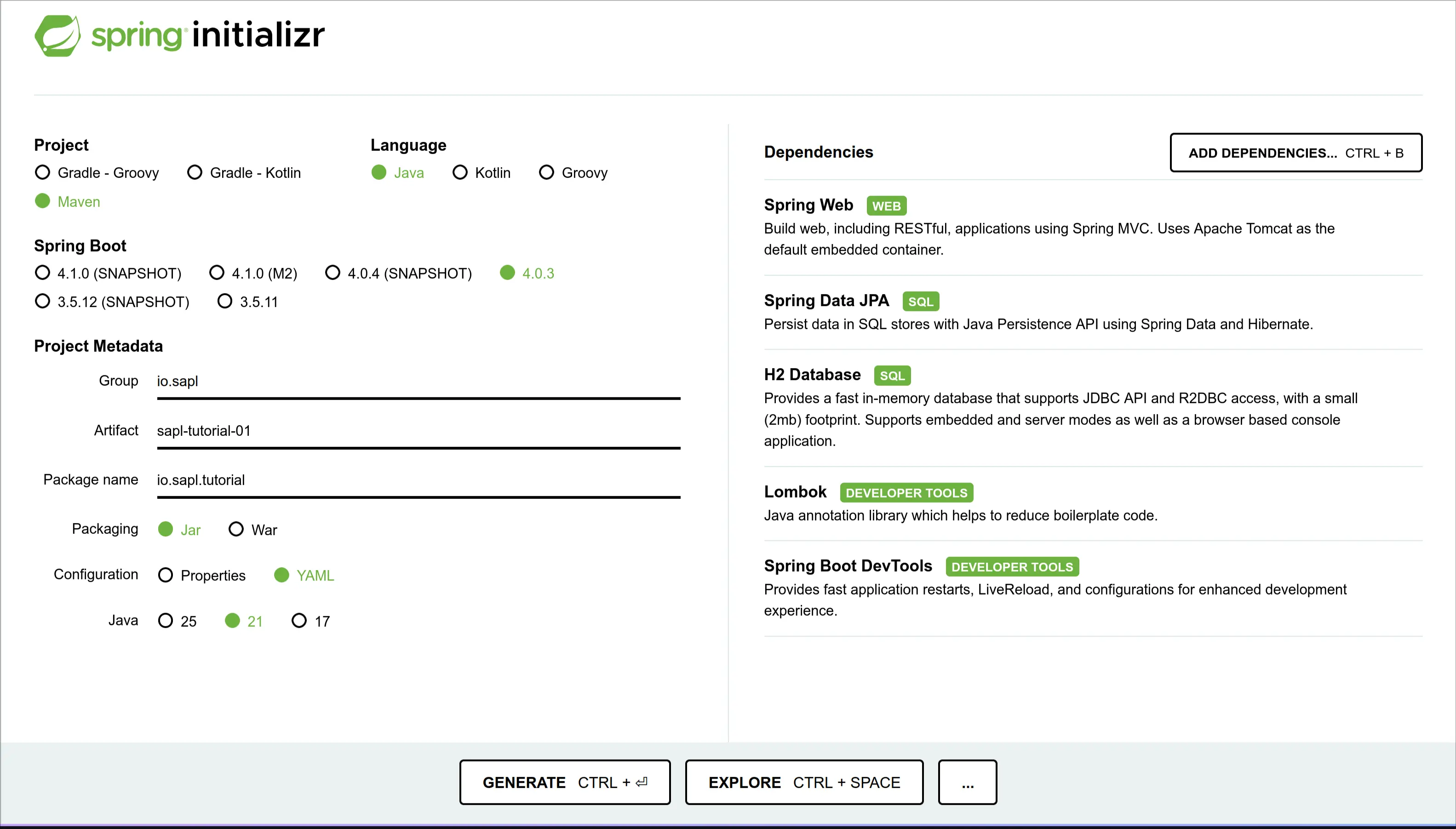

Your Initializr settings should now look something like this:

Spring Initializr

Now click “GENERATE.” Your browser will download the project template as a “.zip” file.

Now unzip the project and import it into your preferred IDE.

Adding SAPL Dependencies

This tutorial uses the 4.0.0-SNAPSHOT version of SAPL. To enable Maven to download the respective libraries, add the central snapshot repository to your pom.xml file:

    <repositories>
      <repository>
        <name>Central Portal Snapshots</name>
        <id>central-portal-snapshots</id>
        <url>https://central.sonatype.com/repository/maven-snapshots/</url>
      <releases>
        <enabled>false</enabled>
      </releases>
      <snapshots>
        <enabled>true</enabled>
      </snapshots>
    </repository>
  </repositories>

SAPL provides a bill of materials module to help you to use compatible versions of SAPL modules. By adding the following to your pom.xml, you do not need to declare the <version> of each SAPL dependency:

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>io.sapl</groupId>
                <artifactId>sapl-bom</artifactId>
                <version>4.0.0-SNAPSHOT</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

To develop an application using SAPL, you need two components. First, you need a component to make authorization decisions, the so-called Policy Decision Point (PDP). You can embed the PDP in your application or use a dedicated server application and delegate the decision-making to that remote service. This tutorial uses an embedded PDP that makes decisions locally based on policies stored in the application resources. SAPL offers deep integration with Spring Security, allowing you to deploy Policy Enforcement Points easily using a declarative aspect-oriented programming style. Add the following single starter dependency to your project:

    <dependency>
        <groupId>io.sapl</groupId>
        <artifactId>sapl-spring-boot-starter</artifactId>
    </dependency>

To use the Argon2 Password Encoder, add the following dependency:

    <dependency>
        <groupId>org.bouncycastle</groupId>
        <artifactId>bcpkix-jdk18on</artifactId>
        <version>1.83</version>
    </dependency>

Finally, create a new folder in the resources folder src/main/resources called policies and create a file called pdp.json:

{
    "algorithm": {
        "votingMode": "PRIORITY_DENY",
        "defaultDecision": "DENY",
        "errorHandling": "PROPAGATE"
    },
    "variables": {}
}

The algorithm object selects the combining algorithm for resolving conflicting policy evaluation results. The three fields control orthogonal concerns:

This configuration is deliberately restrictive: deny takes priority, the default is deny, and errors propagate. This is the secure-by-default posture. You will write explicit permit policies to grant access.

The policies directory and pdp.json file are required for the embedded PDP to start. Without them, the application will fail during startup.

You can use the variables property to define environment variables, such as the configuration of Policy Information Points (PIPs). All policies can access the contents of these variables.

This file completes the basic setup of the Maven project. Now, we can start implementing the application.

The Project Domain

The domain is a library where books can only be viewed if the user meets the minimum age rating. If you are already familiar with Spring Boot, JPA, and Spring Security, skip ahead to Securing Repository Methods with SAPL.

Define the Book Entity and Repository

First, define a book entity that contains an ID, a name, a suitable age rating, and content. You can use project Lombok annotations to automatically create getters, setters, and constructors as follows:

@Data
@Entity
@NoArgsConstructor
@AllArgsConstructor
public class Book {
    @Id
    Long id;
    String name;
    Integer ageRating;
    String content;
}

Now, define a matching repository interface. For now, only include a findAll, findById, and save method:

public interface BookRepository {
    Iterable<Book> findAll();
    Optional<Book> findById(Long id);
    Book save(Book entity);
}

Also, define a matching repository bean to have Spring Data automatically instantiate a repository implementing your interface:

@Repository
// Attention: here order of interface matters for detecting SAPL annotations.
public interface JpaBookRepository extends BookRepository, CrudRepository<Book, Long>  { }

Expose the Books using a REST Controller

To expose the books to the users, implement a simple REST controller. We use the Lombok annotation to create a constructor that takes the required beans as parameters for the dependency injection of the repository implementation:

@RestController
@RequiredArgsConstructor
public class BookController {

    private final BookRepository repository;

    @GetMapping("/api/books")
    Iterable<Book> findAll() {
        return repository.findAll();
    }

    @GetMapping("/api/books/{id}")
    Optional<Book> findById(@PathVariable Long id) {
        return repository.findById(id);
    }
}

Create a Custom LibraryUser Implementation

Now extend the User class from the package org.springframework.security.core.userdetails to create a custom LibraryUser implementation that contains the library user’s birthdate.

@ToString(callSuper = true)
@EqualsAndHashCode(callSuper = true)
public class LibraryUser extends User {

    @Getter
    private LocalDate birthday;

    public LibraryUser(String username, LocalDate birthday, String password) {
        super(username, password, true, true, true, true, List.of());
        this.birthday=birthday;
    }
}

To make sure the custom LibraryUser class will end up in the security context, implement a custom LibraryUserDetailsService which implements the UserDetailsService. This class loads the various LibraryUsers so that they can be used for authentication. So, for the tutorial, implement a simple custom in-memory UserDetailsService:

public class LibraryUserDetailsService implements UserDetailsService {

    Map<String, LibraryUser> users = new HashMap<>();

    public LibraryUserDetailsService(Collection<LibraryUser> users) {
        users.forEach(this::load);
    }

    public void load(LibraryUser user) {
        users.put(user.getUsername(), user);
    }

    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        var user = users.get(username);
        System.out.println("->"+user);
        if (user == null) {
            throw new UsernameNotFoundException("User not found");
        }
        return new LibraryUser(user.getUsername(), user.getBirthday(), user.getPassword());
    }
}

Create a Configurations class

Create a SecurityConfiguration class with the Lombok annotations @Configuration and @EnableWebSecurity. This class provides methods that are automatically processed in the context of Spring Security.

@Configuration
@EnableWebSecurity
public class SecurityConfiguration {

    @Bean
    SecurityFilterChain filterChain(HttpSecurity http) throws Exception {
        var clearSiteData = new HeaderWriterLogoutHandler(new ClearSiteDataHeaderWriter(Directive.ALL));
        // @formatter:off
        return http.authorizeHttpRequests(requests -> requests.anyRequest().authenticated())
                   .formLogin(login -> login.defaultSuccessUrl("/api/books", true))
                   .logout(logout -> logout.permitAll()
                           .logoutSuccessUrl("/login")
                           .addLogoutHandler(clearSiteData))
                   .build();
        // @formatter:on
    }

    @Bean
    static PasswordEncoder passwordEncoder() {
        return Argon2PasswordEncoder.defaultsForSpringSecurity_v5_8();
    }

    @Bean
    UserDetailsService userDetailsService(PasswordEncoder passwordEncoder) {
        return new LibraryUserDetailsService(DemoData.users(passwordEncoder));
    }
}

Generate Test-Data on Application Startup

The default configuration with H2 and JPA will create a volatile in-memory database. Therefore, we want the system to contain some books each time the application starts. For this, create a CommandLineRunner. This class executes once the application context is loaded successfully:

@Component
@RequiredArgsConstructor
public class DemoData implements CommandLineRunner {

    public static final String DEFAULT_RAW_PASSWORD = "password";

    private final BookRepository bookRepository;

    @Override
    public void run(String... args) {
        // @formatter:off
        bookRepository.save(new Book(1L, "Clifford: It's Pool Time!",                                  0, "*Woof*"));
        bookRepository.save(new Book(2L, "The Rescue Mission: (Pokemon: Kalos Reader #1)",             4, "Gotta catch 'em all!"));
        bookRepository.save(new Book(3L, "Dragonlance Chronicles Vol. 1: Dragons of Autumn Twilight",  9, "Some fantasy story."));
        bookRepository.save(new Book(4L, "The Three-Body Problem",                                    14, "Space is scary."));
        // @formatter:on
    }

    private static LocalDate birthdayForAgeInYears(int age) {
        return LocalDate.now().minusYears(age).minusDays(20);
    }

    public static Collection<LibraryUser> users(PasswordEncoder encoder) {
        var users = new LinkedList<LibraryUser>();
        // @formatter:off
        users.add(new LibraryUser("zoe",   birthdayForAgeInYears(17), encoder.encode(DEFAULT_RAW_PASSWORD)));
        users.add(new LibraryUser("bob",   birthdayForAgeInYears(10), encoder.encode(DEFAULT_RAW_PASSWORD)));
        users.add(new LibraryUser("alice", birthdayForAgeInYears(3),  encoder.encode(DEFAULT_RAW_PASSWORD)));
        // @formatter:on
        return users;
    }
}

The application domain is complete, and you can test the application. Build it with mvn clean install and then run it by executing mvn spring-boot:run on the command line or use the matching tools in your IDE.

After the application starts, go to http://localhost:8080/api/books. The browser will forward you to the login page. Use one of the users above to log in. You should see a list of all books:

[
    {
        "id"       : 1,
        "name"     : "Clifford: It's Pool Time!",
        "ageRating": 0,
        "content"  : "*Woof*"
    },
    {
        "id"       : 2,
        "name"     : "The Rescue Mission: (Pokemon: Kalos Reader #1)",
        "ageRating": 4,
        "content"  : "Gotta catch 'em all!"
    },
    {
        "id"       : 3,
        "name"     : "Dragonlance Chronicles Vol. 1: Dragons of Autumn Twilight",
        "ageRating": 9,
        "content"  : "Some fantasy story."
    },
    {
        "id"       : 4,
        "name"     : "The Three-Body Problem",
        "ageRating": 14,
        "content"  : "Space is scary."
    }
]

So far, this tutorial has not used any features of SAPL, and you just created a basic Spring Boot application. Note that we did not explicitly add any dependency on Spring Security. The SAPL Spring integration has a transitive dependency on Spring Security, which activated it for the application.

Securing Repository Methods with SAPL

Setting Up Method Security

SAPL extends the Spring Security framework’s method security features. To activate SAPL’s method security for single decisions, add the @EnableSaplMethodSecurity Lombok annotation to your SecurityConfiguration class.

@Configuration
@EnableWebSecurity
@EnableSaplMethodSecurity
public class SecurityConfiguration {
    ...
}

Adding the first PEP

The SAPL Spring Boot integration uses annotations to add PEPs to methods and classes. The scope of this tutorial covers the two variants @PreEnforce and @PostEnforce. Depending on which annotation is selected, the PEP is placed before or after the method execution. As a first example, add the @PreEnforce annotation to the findByIdmethod of the BookRepository interface:

public interface BookRepository {
    Iterable<Book> findAll();

    @PreEnforce
    Optional<Book> findById(Long id);

    Book save(Book entity);
}

Enable console output

Add io.sapl.pdp.embedded.print-text-report=true to your application.properties file. The text report logs each PDP decision with the subscription, decision outcome, and which policy documents matched. You can also select ...print-json-report for a machine-readable variant or ...print-trace for a full evaluation trace including attribute resolution. print-trace is the most fine-grained explanation and is only recommended as a last resort for troubleshooting.

The text report output looks like this:

[...] : --- PDP Decision ---
[...] : Timestamp      : 2026-03-18T20:43:19.327+01:00
[...] : Subscription Id: 46d7ff56-...
[...] : Subscription   : { ... }
[...] : Decision       : PERMIT
[...] : PDP ID         : default
[...] : Documents:
[...] :   policy-name -> PERMIT

For each decision, you see which documents were evaluated and their individual outcomes. For policy sets, sub-policy results are listed under the set name. If PIPs are involved, their attribute values appear in the trace. Obligations and advice are listed when present in the decision.

For additional debug output, e.g., which policy documents are loaded at startup, you can use logging.level.io.sapl=DEBUG in your application.properties.

Restart the application, log in, and navigate to http://localhost:8080/api/books/1. You should now see an error page including the statement: There was an unexpected error (type=Forbidden, status=403).

Inspect the console, and you will find out what happened behind the scenes. The logs should contain statements similar to the following:

[...] : --- PDP Decision ---
[...] : Timestamp      : 2026-03-18T20:43:19.327+01:00
[...] : Subscription Id: 46d7ff56-11c5-f628-6d6a-952bb1425558
[...] : Subscription   : { ... large JSON object ... }
[...] : Decision       : DENY
[...] : PDP ID         : default

The log contains the authorization subscription (a large JSON object), the decision made by the PDP, a timestamp, and the PDP identifier. The decision is DENY because no policies exist yet and the combining algorithm defaults to deny.

The subscription is not very readable in the log. Let us apply some formatting to unpack the key parts of the subscription object:

{
    "subject": {
        "authenticated": true,
        "authorities": [
            { "authority": "FACTOR_PASSWORD", "issuedAt": "..." }
        ],
        "name": "zoe",
        "principal": {
            "username": "zoe",
            "birthday": "2009-02-26",
            "authorities": [],
            "accountNonExpired": true,
            "accountNonLocked": true,
            "credentialsNonExpired": true,
            "enabled": true
        }
    },
    "action": {
        "http": {
            "method": "GET",
            "requestedURI": "/api/books/1",
            "requestURL": "http://localhost:8080/api/books/1",
            "serverName": "localhost",
            "serverPort": 8080,
            "headers": { ... },
            "cookies": [ ... ]
        },
        "java": {
            "name": "findById",
            "declaringTypeName": "io.sapl.tutorial.domain.BookRepository",
            "modifiers": ["public"],
            "instanceof": [ ... ],
            "arguments": [1]
        }
    },
    "resource": {
        "http": { ... },
        "java": { ... }
    }
}

Note: Spring Security 7 automatically adds a FACTOR_PASSWORD authority to the authentication when the user logs in with a password. This is part of the multi-factor authentication framework.

As you can see, without any specific configuration, the subscription is a massive object with significant redundancies. This is because the SAPL Engine and Spring integration do not have any domain knowledge regarding the application. Thus, the PEP gathers any information it can find that could reasonably describe the three required objects (subject, action, resource) for an authorization subscription.

By default, the PEP attempts to marshal the Authentication object from Spring’s SecurityContext directly into a JSON object for the subject. This is a reasonable approach in most cases, and as you can see, subject.principal.birthday contains the data you previously defined for the custom LibraryUserclass and is made available to the PDP.

The action and resource objects are almost identical. Consider where one can find information from the application context to describe these objects. Without any domain knowledge, the PEP can only gather technical information.

Let’s begin with the action and its associated Java information. The PEP can consider the name and types of the protected classes and methods to describe the action. For example, the method name findById can be considered a verb that describes the action, while the argument 1 is an attribute of this action.

At the same time, the argument 1 can also be considered as the resource’s ID. What information about the PEP’s Java context is actually relevant is unknown to the PEP. Therefore, it adds all information it can gather to the action and resource.

Second, if the action happens in the context of a web application, often the application context contains an HTTP request. Again, this HTTP request can describe the action, e.g., the HTTP method GET, or the resource, e.g., the URL naturally identifies a resource.

This kind of subscription object is wasteful. Later, you will learn how to customize the subscription to be more compact and match your application domain. For now, we stick with the default configuration.

Storing SAPL Policies for an Embedded PDP

As you can see in the sixth line in the console log, the PDP did not find any policy document matching the authorization subscription, as we have not yet defined any policy for the application. With an embedded PDP, policies can be stored alongside the application’s resources folder or somewhere on the host’s filesystem. The difference between these options is that with policies in the resources, once you have built and started the application, the policies are static at runtime. When using the filesystem, the PDP will actively monitor the folder and update its behavior accordingly when policies change at runtime.

The default configuration of an embedded PDP is the first option, so the application’s policies are currently embedded in the resources.

If you want to configure this behavior, you have to add io.sapl.pdp.embedded.pdp-config-type = DIRECTORY to the application.properties file.

The pdp.json file and the policies can be stored in different folders. This is regulated with the properties io.sapl.pdp.embedded.config-path for the pdp.json file and io.sapl.pdp.embedded.policies-path for the policies. Both require a valid file system path for the folder where the files are located.

Note: \ within the path must be replaced by /, e.g., C:\Users by C:/Users.

Creating SAPL Policies

Basic Information

The stored policy documents must adhere to some rules:

A SAPL policy document contains the following minimum elements:

Other optional elements will be explained later.

First SAPL Policies - Permit All or Deny All

The most basic policies are the policies to either permit or deny all actions without further inspection of any attributes.

Let us start with a “permit all” policy. Add a file permit_all.sapl to the resources/policies folder of the maven project with the following contents:

policy "permit all" permit

As described above, we start with the keyword policy, which indicates that it is a policy. This keyword is always followed by the name of the SAPL policy as a string. In this case "permit all". The policy name must always be followed by the entitlement, in this case permit.

In this guide, we haven’t described any rules in the policy. Therefore, all of its rules are satisfied, and the policy tells the PDP to return a permit decision, regardless of any details of the attributes contained in the authorization subscription or any external attributes from PIPs. This type of policy is dangerous and not very practical for production systems. However, it is helpful during development to be able to perform quick tests without authorization getting in the way.

Now restart the application, authenticate with any user and access http://localhost:8080/api/books/1 again.

Now you should get the data for book 1:

{
    "id"        : 1,
    "name"      : "Clifford: It's Pool Time!",
    "ageRating" : 0,
    "content"   : "*Woof*"
}

And your log should look like this:

[...] : --- PDP Decision ---
[...] : Subscription   : { ... }
[...] : Decision       : PERMIT
[...] : PDP ID         : default
[...] : Documents:
[...] :   permit all -> PERMIT

The log shows that the PDP found one matching policy document (permit all) and it evaluated to PERMIT. Since this is the only policy and it has no conditions, the "permit all" policy always matches and always returns its entitlement.

Since this is the only matching document and it returns permit, the PDP grants access. The PEP allows the repository method to execute.

Now, create a “deny all” policy alongside. Add a file deny_all.sapl to the resources/policies folder:

policy "deny all" deny

Restart the application, authenticate with any user and access http://localhost:8080/api/books/1 again.

The application denies access. The log shows both policies matched, but the PRIORITY_DENY combining algorithm gives precedence to the deny decision:

[...] : --- PDP Decision ---
[...] : Subscription   : { ... }
[...] : Decision       : DENY
[...] : PDP ID         : default
[...] : Documents:
[...] :   permit all -> PERMIT
[...] :   deny all -> DENY

This is the secure-by-default behavior: when both permit and deny are present, deny wins. The SAPL engine implements several combining algorithms to resolve conflicting decisions (see SAPL Documentation - Combining Algorithms).

The three fields in the pdp.json algorithm configuration control orthogonal concerns: votingMode determines priority between permit and deny, defaultDecision is the fallback when no policy matches, and errorHandling controls whether evaluation errors propagate or are silently absorbed.

Finally, rename deny_all.sapl to deny_all.sapl.off and permit_all.sapl to permit_all.sapl.off. After renaming, rebuild with mvn clean compile before restarting. The clean is needed because compiled resources in the target/ directory are not removed by a regular build. Without it, the old .sapl files remain on the classpath and the PDP still loads them. Now access to the book should be denied, as the PDP only loads documents with the .sapl suffix and no matching policies remain.

The PDP may also return indeterminate if an error occurred during policy evaluation. In all cases except an explicit permit, the PEP must deny access. Additional information about the different results of a policy evaluation can be found in the SAPL documentation.

In this section, you learned how a PEP and PDP interact in SAPL and how the PDP combines outcomes of different policies. In the next step, you will learn how to write more practical policies and when precisely a policy is applicable, i.e., matches, for an authorization subscription.

Create Domain-Specific Policies

First, add a @PreEnforce PEP to the findAll method of the BookRepository:

public interface BookRepository {

    @PreEnforce
    Iterable<Book> findAll();

    @PreEnforce
    Optional<Book> findById(Long id);

    Book save(Book entity);
}

Let’s write a policy that says, “Only Bob can see individual book entries”. Writing such natural language policies (NLP) is important to avoid inconsistencies between administrators and other users. Now, create a policy document permit_bob_for_books.sapl in the policies folder under resources, and translate the NLP into a SAPL policy document as follows:

policy "only bob may see individual book entries"
permit
    action.java.name == "findById" & action.java.declaringTypeName =~ ".*BookRepository$";
    subject.name == "bob";

Now rebuild with mvn clean compile (clean is needed to remove any previously compiled .sapl.off files from the target directory), restart, and log in as Bob. You should see an error page with status 403. This happens because the login redirects to /api/books which calls findAll, and no policy matches that method.

Now access an individual book directly at http://localhost:8080/api/books/1. Access will be granted, and the log looks like this:

[...] : --- PDP Decision ---
[...] : Subscription   : { ... }
[...] : Decision       : PERMIT
[...] : PDP ID         : default
[...] : Documents:
[...] :   only bob may see individual book entries -> PERMIT

Now go to http://localhost:8080/logout and log out. Then log in as Zoe and try to access http://localhost:8080/api/books/1.

The application denies access:

[...] : --- PDP Decision ---
[...] : Subscription   : { ... }
[...] : Decision       : DENY
[...] : PDP ID         : default

As you can see, there are several differences in the decision-making process of the PDP. First, let us examine what leads to the fact that there are no applicable (matching) documents when accessing /api/books or after a successful login.

If you look at the policy, the conditions following permit contain two rules separated by semicolons. The first condition action.java.name == "findById" & action.java.declaringTypeName =~ ".*BookRepository$" acts as a scoping rule that determines if the policy is relevant to the given authorization subscription. The PDP only evaluates the remaining conditions if this first condition is true. As seen in the "permit all" example, if no conditions are present, the policy always applies.

In this case, the target expression examines two attributes of the action in the subscription. It validates if action.java.name is equal to "findById" and if action.java.declaringTypeName matches the regular expression ".*BookRepository$", i.e., the attribute string ends with BookRepository, using the regex comparison operator =~.

Note: In the authorization subscription JSON, nested objects use :{. In SAPL policy expressions, you navigate these nested structures with dot notation. For example, "action": {"java": {"name": "findById"}} in the subscription becomes action.java.name in the policy.

These two expressions explain why the PDP has identified the policy document "permit_bob_for_books.sapl" as applicable when accessing individual books, but does not find a matching document when accessing the entire list.

Please note that SAPL distinguishes between lazy Boolean operators, i.e., && and || for AND and OR, and eager Boolean operators & and | respectively. Target expressions only allow eager operators, a requirement for efficient indexing of larger sets of policies.

The PDP evaluates the complete policy when the user attempts to access the individual book. The policy body is the list of conditions following permit or deny. It contains an arbitrary number of rules or variable assignments, each ending with a ;. Each rule is a Boolean expression. The body as a whole evaluates to true when all of its rules evaluate to true. Rules are evaluated lazily from top to bottom.

In the situations above, the rule subject.name == "bob"; is only true when Bob is accessing the book.

In this section, you have learned when a SAPL document is applicable and how the conditions in the policy body determine the authorization decision.

Next, you will learn how to customize the authorization subscription and use temporal functions to only grant access to age-appropriate books.

Enforce the Age Rating of Individual Books

First, in preparation, deactivate all existing policies in your project by deleting them or appending the .off suffix to the filename.

The goal of this section is only to grant access to books appropriate for the user’s age. To make this decision, the PDP needs the birthdate of the user (attribute of the subject), the age rating of the book (attribute of the resource), and the current date (attribute of the environment). When you examine the authorization subscription sent in the previous examples, you will notice that only the user’s birthdate is currently available in the subscription. How can we make the other attributes available for the PDP in the policies?

Generally, there are two potential sources for attributes: the authorization subscription or Policy Information Points (PIPs).

Consider the age rating of the book. This information is not known to the PEP before executing the query. Therefore, in the BookRepository, replace the @PreEnforce on findById with a @PostEnforce annotation as follows:

public interface BookRepository {

    @PreEnforce
    Iterable<Book> findAll();

    @PostEnforce(subject  = "authentication.getPrincipal()",
                 action   = "'read book'",
                 resource = "returnObject")
    Optional<Book> findById(Long id);

    Book save(Book entity);
}

This annotation does a couple of things:

When we inspected the original automatically generated authorization subscription, you will remember that the resulting object was relatively large and technical. Here, the parameters of the @PostEnforce annotation helps create a more domain-specific precise authorization subscription.

The parameter subject = "authentication.getPrincipal()" extracts the principal object from the authentication object and uses it as the subject-object in the subscription.

The parameter action = "'read book'" sets the action-object in the subscription to the string constant read book.

Finally, the parameter resource = "returnObject" sets the resource-object in the subscription to the method invocation result. As this resource is the book entity, it will automatically contain its ageRating attribute.

After identifying these objects, the PEP uses the ObjectMapper in the Spring application context to serialize the objects to JSON.

The resulting authorization subscription will look similar to this:

{
    "subject": {
        "username": "zoe",
        "birthday": "2009-02-26",
        "password": null,
        "accountNonExpired": true,
        "accountNonLocked": true,
        "authorities": [],
        "credentialsNonExpired": true,
        "enabled": true
    },
    "action": "read book",
    "resource": {
        "id": 1,
        "name": "Clifford: It's Pool Time!",
        "ageRating": 0,
        "content": "*Woof*"
    },
    "environment": null
}

This authorization subscription is much more manageable and practical than the automatic guesswork the Spring integration performs without any customization.

The policy we will write to enforce the book age restriction will introduce a number of new concepts:

Create a policy document check_age.sapl as follows:

policy "check age"
permit
    action == "read book";
    var birthday  = subject.birthday;
    var today     = time.dateOf(|<time.now>);
    var age       = time.timeBetween(birthday, today, "years");
    age >= resource.ageRating;

In its first condition, the policy check age scopes its applicability to all authorization subscriptions with the action read book.

The policy then defines a local attribute variable named birthday and assigns it to the subject.birthday attribute.

The next line assigns the current date to the variable today. In SAPL, angled brackets <ATTRIBUTE_IDENTIFIER> always denotes an attribute stream, a subscription to an external attribute source, using a Policy Information Point (PIP). In this case, the identifier time.now is used to access the current time in UTC from the system clock.

In this guide, we do not need the streaming nature of the time, and we are only interested in the first event in the attribute stream. Prepending the pipe symbol to the angled brackets |<> only takes the head element, i.e., the first event in the attribute stream, and then unsubscribes from the PIP. The time libraries in SAPL use ISO 8601 strings to represent time. The function time.dateOF is then used to extract the date component of the timestamp retrieved from the PIP.

The policy calculates the subject’s age in years using the time.timeBetween function and the defined variables. The ageRating of the book is stored in the matching variable.

Note that the engine evaluates variable assignment rules from top to bottom. And each rule has access to variables defined above it. Also, these assignment rules always evaluate to true unless an error occurs during evaluation.

Finally, the age is compared with the ageRating and the policy returns trueif the subject’s age is above the book’s age rating.

For example, if you log in as Zoe and access the first book, the logs will show:

[...] : --- PDP Decision ---
[...] : Subscription   : { ... }
[...] : Decision       : PERMIT
[...] : PDP ID         : default
[...] : Documents:
[...] :   check age -> PERMIT

However, if Alice attempts to access book four, access will be denied because the age condition evaluates to false and the policy becomes not applicable:

[...] : --- PDP Decision ---
[...] : Subscription   : { ... }
[...] : Decision       : DENY
[...] : PDP ID         : default
[...] : Documents:
[...] :   check age -> NOT_APPLICABLE

The policy can be written more compactly using an import statement:

import time.timeBetween
import time.dateOf
policy "check age compact"
permit
    action == "read book";
    var age = timeBetween(subject.birthday, dateOf(|<time.now>), "years");
    age >= resource.ageRating;

Imports allow the use of a shorter name instead of the fully qualified name of functions stored in libraries within a SAPL policy document.

For instance, the statement import time.timeBetween imports the timeBetween function from the time library, making it available under its simple name. You can also import individual attribute finders or use 'library name' as 'alias' for aliasing.

It is also possible to import only single functions and use them under their simple names, as well as to choose an alias for a certain library with 'library name' as 'alias'.

How to transform and constrain Outputs with SAPL Policies?

In this part of the tutorial, you will learn how to use policies to change the outcome of queries and how to trigger side effects using constraints.

SAPL can be used to instruct the PEP to grant access only if other instructions are enforced at the same time. SAPL supports three types of additional instructions and calls them constraints. These constraints are as follows:

An authorization decision containing a constraint expresses that the PEP must only grant (or deny) access when it can fulfil all obligations.

For example, any doctor may access a patient’s medical record in an emergency. However, the system must log access if the doctor is not the attending doctor of the patient in question, triggering an audit process. Such a set of requirements is a so-called “breaking the glass scenario.”

How to use Transformations in SAPL Policies?

The Book entity already includes a content field. We want to change the policies of the library in a way that users not meeting the age requirement do not get their access denied. Instead, only the content of the applied book should be blackened. To implement this change, add the following check_age_transform.sapl policy document to the application’s policies:

import time.timeBetween
import time.dateOf
import filter.blacken
policy "check age transform"
permit
    action == "read book";
    var age = timeBetween(subject.birthday, dateOf(|<time.now>), "years");
    age < resource.ageRating;
transform
    resource |- {
        @.content : blacken(3,0,"\u2588")
    }

This policy introduces the transform expression for the transformations.

If the policy conditions are met (all evaluate to true), whatever JSON value the transform expression evaluates to is added to the authorization decision as the property resource. The presence of a resource object in the authorization decision instructs the PEP to replace the original resource data with the one supplied.

In this case, the so-called filter operator |- is applied to the resource object. The filter operator enables the selection of individual parts of a JSON value for manipulation, e.g., applying a function to the selected value. In this case, the operator selects the content key of the resource and replaces it with a version of its content, only exposing the three leftmost characters and replacing the rest with a black square (“\u2588” in Unicode). The selection expression is very powerful. Please refer to the SAPL Documentation for a full explanation.

Ensure that the original age-checking policy is still in place. Now, restart and log in as Alice.

When accessing http://localhost:8080/api/books/1, you will get:

{
    "id"        : 1,
    "name"      : "Clifford: It's Pool Time!",
    "ageRating" : 0,
    "content"   : "*Woof*"
}

But of course, because Alice is only three years old, the content of the age-inappropriate book http://localhost:8080/api/books/4 will be blackened:

{
    "id"        : 4,
    "name"      : "The Three-Body Problem",
    "ageRating" : 14,
    "content"   : "Spa████████████"
}

The logs for this access attempt look like this:

[...] : --- PDP Decision ---
[...] : Subscription   : { ... }
[...] : Decision       : PERMIT
[...] : PDP ID         : default
[...] : Documents:
[...] :   check age -> NOT_APPLICABLE
[...] :   check age transform -> PERMIT

Both policies match the subscription. The check age policy evaluates to NOT_APPLICABLE because Alice is not old enough to read “The Three-Body Problem”. The check age transform policy evaluates to PERMIT with a transformed resource. As a result, the PEP replaces the original resource with the one from the decision, containing the blackened content.

How to use Obligations and Advice in SAPL Policies?

The check age transform policy with the transform statement was the first example of a policy that instructs the PEP to grant access only if additional statements are enforced at the same time.

Now, we want to add an obligation to this policy. The system should also log attempted access to books that are not age-appropriate. This will allow parents to discuss the book with their children first.

To do so, modify the check_age_transform.sapl policy as follows:

import time.timeBetween
import time.dateOf
import filter.blacken
policy "check age transform"
permit
    action == "read book";
    var age = timeBetween(subject.birthday, dateOf(|<time.now>), "years");
    age < resource.ageRating;
obligation
    {
        "type": "logAccess",
        "message": "Attention, "+subject.username+" accessed the book '"+resource.name+"'."
    }
transform
    resource |- {
        @.content : blacken(3,0,"\u2588")
    }

Now log in as Alice and attempt to access http://localhost:8080/api/books/2.

Access will be denied, and the logs look as follows:

[...] : --- PDP Decision ---
[...] : Subscription   : { ... }
[...] : Decision       : PERMIT
[...] : Obligations: [{"type"="logAccess", "message"="Attention, alice accessed the book '...'"}]
[...] : PDP ID         : default
[...] : Documents:
[...] :   check age -> NOT_APPLICABLE
[...] :   check age transform -> PERMIT

Despite the PDP’s decision to permit access, it was still denied due to the obligation to log the access in the authorization decision. This is because SAPL expresses obligations and advice as arbitrary JSON objects and does not know which of them might be relevant in an application domain or how policies decide to describe them. Thus, the PEP was unable to understand and enforce the logging obligation, resulting in the denial of access.

To support the logging obligation, implement a so-called constraint handler provider:

@Slf4j
@Service
public class LoggingConstraintHandlerProvider implements RunnableConstraintHandlerProvider {

    @Override
    public Signal getSignal() {
        return Signal.ON_DECISION;
    }

    @Override
    public boolean isResponsible(Value constraint) {
        if (!(constraint instanceof ObjectValue obj)) {
            return false;
        }
        return obj.get("type") instanceof TextValue type && "logAccess".equals(type.value());
    }

    @Override
    public Runnable getHandler(Value constraint) {
        if (constraint instanceof ObjectValue obj && obj.get("message") instanceof TextValue message) {
            return () -> log.info(message.value());
        }
        return () -> log.info("Access logged");
    }
}

The SAPL Spring integration offers different hooks in the execution path where applications can add constraint handlers. Depending on the annotation and if the underlying method returns a value synchronously or uses reactive datatypes like Flux<> different hooks are available.

For each of these hooks, the constraint handlers can influence the execution differently. E.g., for @PreEnforce the constraint handler may attempt to change the arguments handed over to the method. The different hooks map to interfaces a service bean can implement to provide the capability of enforcing different types of constraints. You can find a full list of the potential interfaces in the sapl-spring-boot-starter module.

In the case of logging, the constraint handler triggers a side effect by logging the message contained in the obligation to the console. Therefore, the RunnableConstraintHandlerProvider is the appropriate interface to implement.

This interface requires three methods:

When logging in as Alice and attempting to access http://localhost:8080/api/books/2 access will be granted, and the logs now contain the following line:

[...] : Attention, alice accessed the book 'The Rescue Mission: (Pokemon: Kalos Reader #1)'.

Let’s try another example of an obligation.

After a successful login, access is still denied. This is because we have not yet implemented a policy for the findAll method. Therefore, we need a policy that allows us to list all age-appropriate books. However, we do not replace the resource with the transform instruction. In a real library, this would require a significant amount of work for the PEP, potentially involving the processing of several hundred data records. Instead, we instruct the PEP to display only certain books.

First, complete the @PreEnforce on findAll in the BookRepository as follows:

public interface BookRepository {

    @PreEnforce(subject = "authentication.getPrincipal()",
                action="'list books'")
    Iterable<Book> findAll();

    @PostEnforce(subject  = "authentication.getPrincipal()",
                 action   = "'read book'",
                 resource = "returnObject")
    Optional<Book> findById(Long id);

    Book save(Book entity);
}

The concept is the same as with the findById method. The parameter subject = "authentication.getPrincipal()" extracts the principal object and uses it as the subject-object in the subscription. The parameter action = "'list books'" sets the action object to the string list books. However, the resource remains unchanged or is guessed due to @PreEnforce.

To see all accessible books write a policy as follows:

import time.timeBetween
import time.dateOf
policy "filter content in collection"
permit
    action == "list books";
obligation
    {
        "type" : "jsonContentFilterPredicate",
        "conditions" : [
            {
                "path" : "$.ageRating",
                "type" : "<=",
                "value" : timeBetween(subject.birthday, dateOf(|<time.now>), "years")
            }
      ]
}

We use the ContentFilterPredicateProvider class that is already provided in the SAPL engine. This class can be used to filter a JSON object and extract nodes that match the specified conditions.

The class is addressed in the obligation using the assignment "type" : "jsonContentFilterPredicate". This is followed by the conditions keyword, where one or more conditions are specified and checked. Here, the array is checked for JSON nodes that contain the ageRating element and whether the age rating is lower than the age of the accessing user. Any matching nodes are then displayed.

Instead of using the provided class, we can again implement our own constraint handler provider:

@Service
public class FilterByAgeProvider implements FilterPredicateConstraintHandlerProvider {

    @Override
    public boolean isResponsible(Value constraint) {
        if (!(constraint instanceof ObjectValue obj)) {
            return false;
        }
        return obj.get("type") instanceof TextValue type
                && "filterBooksByAge".equals(type.value())
                && obj.get("age") instanceof NumberValue;
    }

    @Override
    public Predicate<Object> getHandler(Value constraint) {
        return o -> {
            if (constraint instanceof ObjectValue obj && obj.get("age") instanceof NumberValue age) {
                if (o instanceof Book book) {
                    return age.value().intValue() >= book.getAgeRating();
                }
            }
            return true;
        };
    }
}

Here, we implement the FilterPredicateConstraintHandlerProvider interface.

This interface requires two methods:

Now log in as Bob, and you will see the following list of books:

[
    {
    	"id": 1,
    	"name": "Clifford: It's Pool Time!",
    	"ageRating": 0,
    	"content": "*Woof*"
    },
    {
    	"id": 2,
    	"name": "The Rescue Mission: (Pokemon: Kalos Reader #1)",
    	"ageRating": 4,
    	"content": "Gotta catch 'em all!"
    },
    {
    	"id": 3,
    	"name": "Dragonlance Chronicles Vol. 1: Dragons of Autumn Twilight",
    	"ageRating": 9,
    	"content": "Some fantasy story."
    }
]

Create a Policy Set

A SAPL policy set allows a group of policies to be viewed separately and evaluated using a selected combining algorithm. The result is passed to the PDP and evaluated with the remaining policies (sets). The same algorithms are available as for final conflict resolution, including the first or abstain errors propagate algorithm.

Note: In contrast to the pdp.json file, the algorithms in policy sets must be written in lowercase and with -.

A SAPL policy set consists of the following elements:

As a small example, create a file check_age_by_id_set.sapl. Only one of the two policies, 'check age compact' and 'check age transform', from the previous chapter can be applicable at a time. Therefore, let’s create a policy set that processes both policies.

import time.dateOf
import time.timeBetween
import filter.blacken

set "check age set"
first or abstain errors propagate
for action == "read book"
var birthday    = subject.birthday;
var today       = dateOf(|<time.now>);
var age         = timeBetween(birthday, today, "years");

    policy "check age transform set"
    permit
        age < resource.ageRating;
    obligation
        {
            "type": "logAccess",
            "message": "Attention, "+subject.username+" accessed the book '"+resource.name+"'."
        }
    transform
        resource |- {
            @.content : blacken(3,0,"\u2588")
        }

    policy "check age compact set"
    permit
        age >= resource.ageRating;

The rules for policies within a set are the same as for top-level policies. Each condition ends with a ;. The second policy of the set has a single condition directly following permit.

Deactivate the two policy documents 'check_age_compact.sapl' and 'check_age_transform.sapl' with the extension .off and restart the application.

Now, log in as Bob and access http://localhost:8080/api/books/3. Your logs look as follows:

[...] : --- PDP Decision ---
[...] : Subscription   : { ... }
[...] : Decision       : PERMIT
[...] : PDP ID         : default
[...] : Documents:
[...] :   check age set -> PERMIT
[...] :   check age compact set -> PERMIT
[...] :   check age transform set -> NOT_APPLICABLE

The policy set evaluates both sub-policies. The check age compact set matches (Bob is old enough), while check age transform set does not apply. The set uses first or abstain errors propagate, so the first applicable sub-policy determines the outcome.

Now access http://localhost:8080/api/books/4, you will get:

[...] : --- PDP Decision ---
[...] : Subscription   : { ... }
[...] : Decision       : PERMIT
[...] : Obligations: [{"type"="logAccess", "message"="Attention, bob accessed the book 'The Three-Body Problem'."}]
[...] : PDP ID         : default
[...] : Documents:
[...] :   check age set -> PERMIT
[...] :   check age transform set -> PERMIT
[...] : Attention, bob accessed the book 'The Three-Body Problem'.

The check age transform set policy matches first (Bob’s age < 14), so the set returns its result including the obligation and the transformed resource with blackened content. The second policy in the set is not evaluated because the first was already applicable.

Collection of Obligations, Advice and Transformations

Before we end this tutorial, there is one more thing to note:

Finally, all the obligations and advice from policies that have been evaluated to the same decision are collected in an authorization decision. It is important to note that there may be a difference between policies and policy sets. In the case of sets, not all policies may be evaluated. In this case, only the obligations and advice from evaluated policies with the same result may be collected and transferred.

Another special case concerns transformations. It is not possible to combine multiple transformation statements through multiple policies. Any combining algorithm in SAPL will not return the decision PERMIT if there is more than one policy evaluating to PERMIT and at least one of them contains a transformation statement (this is called transformation uncertainty).

You can download the demo project from the GitHub repository for this tutorial.

Conclusions

In this tutorial series, you have learned the basics of attribute-based access control and how to secure a Spring application with SAPL.

You can achieve much more with SAPL, including deploying flexible distributed organization-wide authorization infrastructures. The following tutorials in this series will focus on more complex obligations, testing, reactive data types, data streaming, customizing UIs based on policies, and applications based on the Axon framework.

Feel free to engage with the developers and community on our Discord Server.
